NIS 2025 · Cambridge AS&A Level · Grade 12 · Paper 1

Paper 1 — Theory Crash Course

Complete exam study guide covering all Paper 1 learning objectives. Every topic includes precise definitions, worked examples from past papers (2023–2025), step-by-step rules, examiner-ready answers, and warnings about the most penalised mistakes.

How to use this guide

⚠️ WARNING Common mistake — marks lost here
📌 DEFINITION Technical term — learn exactly as written
📋 RULE Step-by-step algorithm or procedure
✅ EXAM TIP Ready-made answer aligned to mark scheme
🖼️ IMAGE Placeholder — find and insert this diagram

Ch.1 — Data & Information
1.1 Number Systems
1.2 Binary Arithmetic
1.3 Two's Complement
1.4 Fixed-Point
1.5 Floating-Point
1.6 Security/Privacy/Integrity
1.7 Backup vs Mirroring
1.8 Encryption
1.9 Verification vs Validation
1.10 Protection Measures
1.11 Open vs Closed Source
Ch.2 — Computer Systems
2.1 OS Functions
2.2 OS Types
2.3 User Interfaces
2.4 Registers & System Bus
2.5 RISC vs CISC
2.6 FDE Cycle
2.7 CPU Performance
2.8 RAM vs ROM
2.9 Virtual Memory
2.10 Addressing Modes
2.11 Paging & Segmentation
2.12 Virtual Machines
Ch.3 — AI & Programming
3.1 AI Applications
3.2 VR vs AR
3.3 PL Generations
3.4 Compilers vs Interpreters
3.5 Declarative vs Imperative
3.6 Compilation Stages
Ch.4 — Networks
4.1 LAN vs WAN
4.2 Topologies
4.3 Network Hardware
4.4 Packet vs Circuit
4.5 OSI Model
4.6 WWW/Internet/Intranet
4.7 DNS & URL
4.8 MAC Addresses
4.9 Protocols
4.10 IP Addresses
Appendix
A — Command Words
B — Topic Frequency
C — All Warnings

Chapter 1 — Data and Information

1.1 Number Systems

📌 Binary (Base-2)

A positional number system using only 0 and 1, where each position represents a power of 2. Used because transistors represent exactly two states: on (1) and off (0).

📌 Hexadecimal (Base-16)

Uses 16 symbols (0–9 and A–F) where each single digit represents exactly 4 binary bits (one nibble). A=10, B=11, C=12, D=13, E=14, F=15.

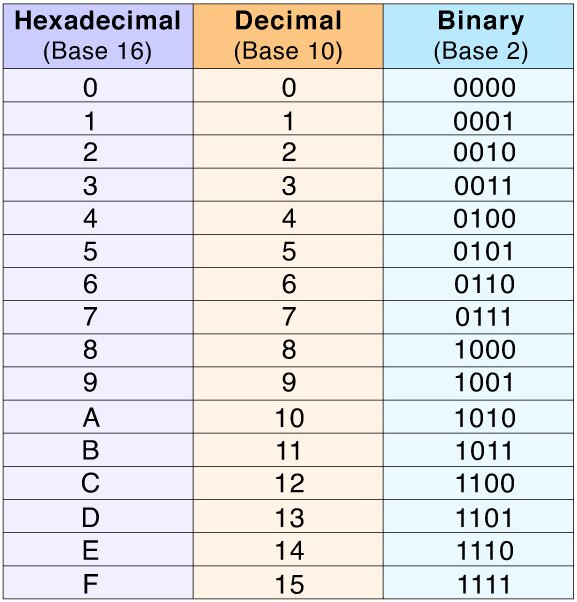

hexadecimal binary decimal conversion table 0-15

✅ Exam Tip — "Explain advantages of hexadecimal" (LO 12.1.1.2)

Shorter and easier to read than binary — fewer digits to write
Easy conversion: group exactly 4 binary bits → 1 hex digit; no arithmetic
Less prone to human error when working with memory addresses
Widely used by programmers to represent binary values compactly

📋 Rule — Denary → Hexadecimal

Divide denary by 16. Record remainder (≥10 → convert: 10=A…15=F).
Divide quotient by 16 again. Record remainder.
Repeat until quotient = 0. Read remainders bottom to top.

★ Worked Examples — 2024 & 2025 Papers

92₁₀ → Hex:  92÷16=5 rem 12(C); 5÷16=0 rem 5  → 5C₁₆
183₁₀ → Hex: 183÷16=11 rem 7;  11÷16=0 rem 11(B) → B7₁₆ (2025 Q1a)

Denary → Binary

Divide by 2 repeatedly; read remainders bottom to top

Binary → Hex

Group 4 bits from right; convert each group to one hex digit

Denary → Octal

Divide by 8 repeatedly; read remainders bottom to top

Binary → Octal

Group 3 bits from right; convert each group

1.2 Binary Arithmetic

📋 Binary Addition Rules

0+0=0 | 0+1=1 | 1+1=0 carry 1 | 1+1+1=1 carry 1

⚠️ Warning — 8-bit Overflow

If addition produces a 9th bit, it is discarded in 8-bit arithmetic. Always show the carry explicitly — mark scheme awards separate marks for showing overflow AND correct 8-bit result.

★ 2025 Paper Q1b — 10101010 + 10111001

  10101010
+ 10111001
----------
1 01100011  ← overflow bit discarded
8-bit result: 01100011

📋 Binary Multiplication (Shift-and-Add)

For each bit of multiplier (right to left): if bit=1, write multiplicand shifted left by that position; if bit=0, write zeros.
Add all partial products using binary addition.

★ 2025 Paper Q1c — 1111 × 111

       1111   (×1, shift 0)
      11110   (×1, shift 1)
     111100   (×1, shift 2)
   ---------
    1101001   = 105₁₀ ✓

1.3 Two's Complement

📌 Two's Complement

Signed binary integer representation where the MSB has negative place value −2^(n−1). All other bits carry normal positive values. To negate: invert all bits, then add 1.

📋 Converting –n to 8-bit Two's Complement

Write +n as 8-bit binary (pad with zeros).
Invert all bits → one's complement.
Add 1 to the result.

★ 2024 Paper Q1b — Represent –15 as 8-bit two's complement

Step 1: +15 = 0000 1111
Step 2: Invert → 1111 0000
Step 3: Add 1 → 1111 0001  ✓

✅ Range of n-bit Two's Complement

Min: −2^(n−1) Max: +2^(n−1) − 1
8-bit: −128 to +127

📋 Binary Subtraction A − B

Convert B to two's complement (= −B).
Add A + (−B) using binary addition.
Discard any carry beyond 8 bits. Remaining 8 bits = A−B.

★ 2024 Paper Q1c — 23₁₀ − 14₁₀

−14: 0000 1110 → invert → 1111 0001 → +1 → 1111 0010
  0001 0111  (+23)
+ 1111 0010  (−14)
-----------
1 0000 1001  → discard overflow → 0000 1001 = 9₁₀ ✓

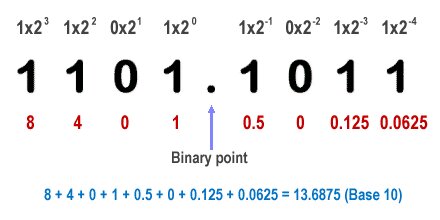

1.4 Fixed-Point Binary Fractions

📌 Fixed-Point Representation

Binary point at a fixed position. Left bits = positive powers of 2. Right bits = 2⁻¹=0.5, 2⁻²=0.25, 2⁻³=0.125.

📋 Denary Fraction → Binary (Multiply-by-2)

Multiply fractional part by 2. Record integer part (0 or 1).
Repeat with remaining fractional part.
Read bits top to bottom.

★ 0.75₁₀ → .11₂ and 0.625₁₀ → .101₂

0.75:  0.75×2=1.50→1 | 0.50×2=1.00→1  =  .11₂
0.625: 0.625×2=1.25→1 | 0.25×2=0.50→0 | 0.50×2=1.00→1  =  .101₂

✅ 2025 Q1d-iii — Byte as fixed-point (3 fractional bits)

Byte 1 0 1 1 1 0 0 0: integer = 10110=22; fractional = 001=0.125 → Answer: 22.125

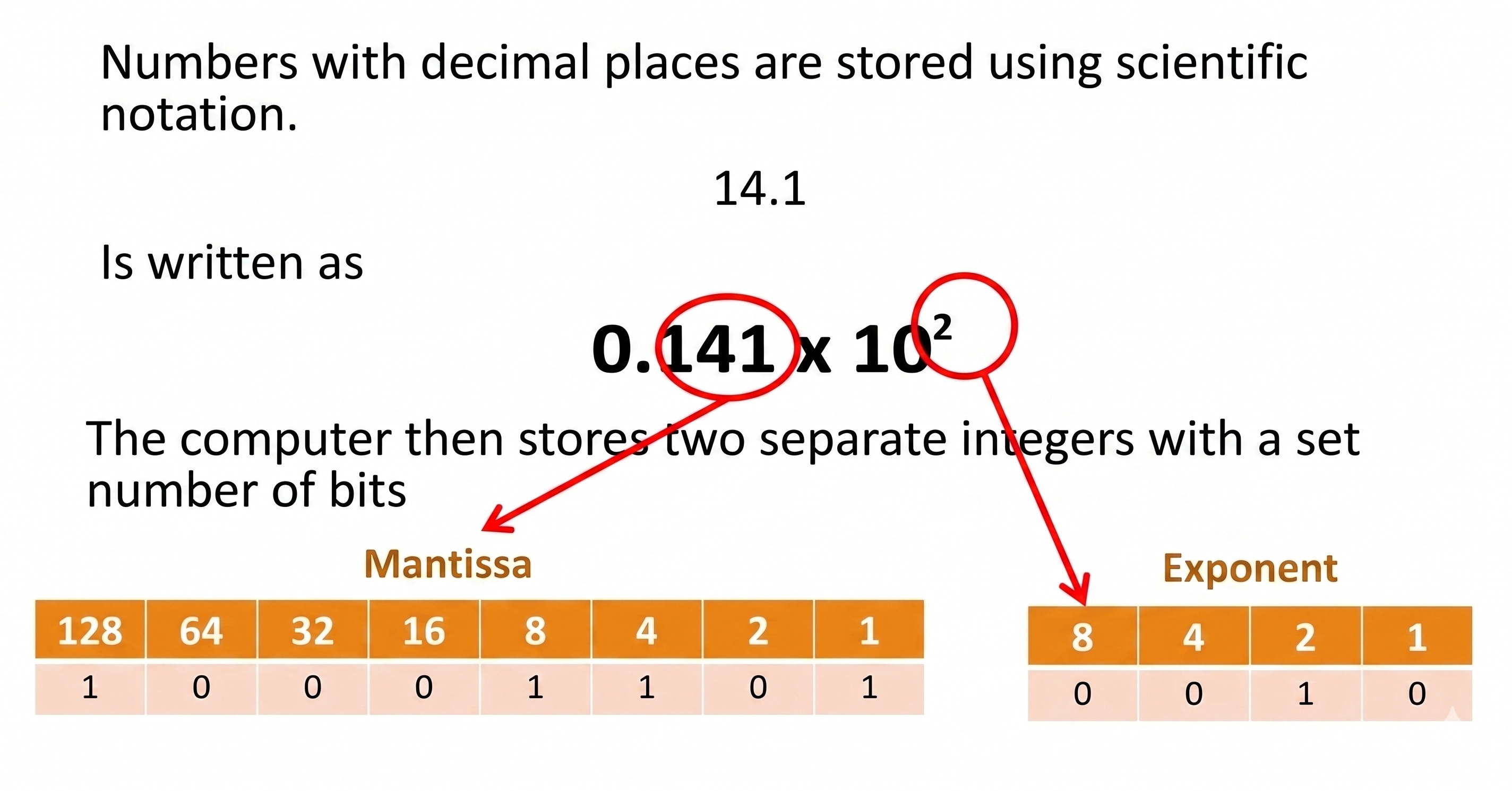

1.5 Floating-Point & Normalisation

📌 Floating-Point

Stores a real number as mantissa (significant digits) and exponent (power of 2 scaling the mantissa). Far wider range than fixed-point.

📌 Normalisation Rule

Positive normalised: mantissa starts 0.1... | Negative normalised: mantissa starts 1.0... — ensures maximum precision.

📋 Positive Denary → Normalised Floating-Point

Convert integer part to binary.
Convert fractional part (multiply-by-2).
Write combined: integer.fraction₂
Normalise: shift point left until mantissa = 0.1xxxxxxx
Count shifts = positive exponent.
Express exponent in two's complement.
Write mantissa bits padded to required length.

★ 2023 Paper Q1d — 17.75₁₀ (10-bit mantissa, 6-bit exponent)

17=10001₂  |  0.75=.11₂  →  10001.11₂
Normalise: 0.100011100 × 2⁵  (shift 5 left)
Exponent +5 = 000101 (6-bit two's complement)
Mantissa (10 bits): 0100011100

★ 2025 Paper Q1e — −23.75₁₀ (mark scheme)

23=10111₂  |  0.75=.11₂  →  10111.11₂  |  Exponent=+5 → 0101
Mantissa (12 bits): 101000010000  |  Exponent (4 bits): 0101

⚠️ Warning — Non-Normalised Mantissa

Mantissa 0.01... is NOT normalised — wastes a bit of precision. First bit AFTER binary point MUST be 1 (positive) or 0 (negative). Examiner checks this explicitly.

1.6 Security vs. Privacy vs. Data Integrity

📌 Data Security

Technical measures protecting data from unauthorised access, loss, or damage. Security = HOW data is protected.

📌 Data Privacy

Legal/ethical rights governing WHO may view, access, share, or sell personal data.

📌 Data Integrity

Assurance that data is accurate, complete, and unaltered. Integrity = WHETHER data is correct.

⚠️ Three Completely Separate Concepts

Security=HOW. Privacy=WHO. Integrity=WHETHER. Writing "security means keeping data private" or "integrity means protecting from hackers" scores zero. The examiner marks each definition independently.

✅ "State two differences: data security vs data integrity" (2025 Q2a)

Integrity deals with validity/accuracy; security deals with protection from unauthorised access.
Security prevents unauthorised access; integrity prevents human error or corruption during data entry.

1.7 Data Backup vs. Disk Mirroring

📌 Data Backup

A periodic copy made at a specific point in time, stored separately (offline/off-site/cloud). Allows recovery to any previous state.

📌 Disk Mirroring (RAID 1)

All write operations simultaneously duplicated to a second physical disk in real time. Hardware redundancy only — no historical copies.

Feature	Data Backup	Disk Mirroring
Timing	Periodic (daily/weekly)	Instantaneous — real time
Historical copies	✓ Yes	✗ No — current state only
Hardware failure	✓ Yes	✓ Yes
Accidental deletion	✓ Yes	✗ No — mirrored instantly
Ransomware attack	✓ Yes	✗ No — encrypted files mirrored
Virus spread	✓ Yes	✗ No — spreads to mirror

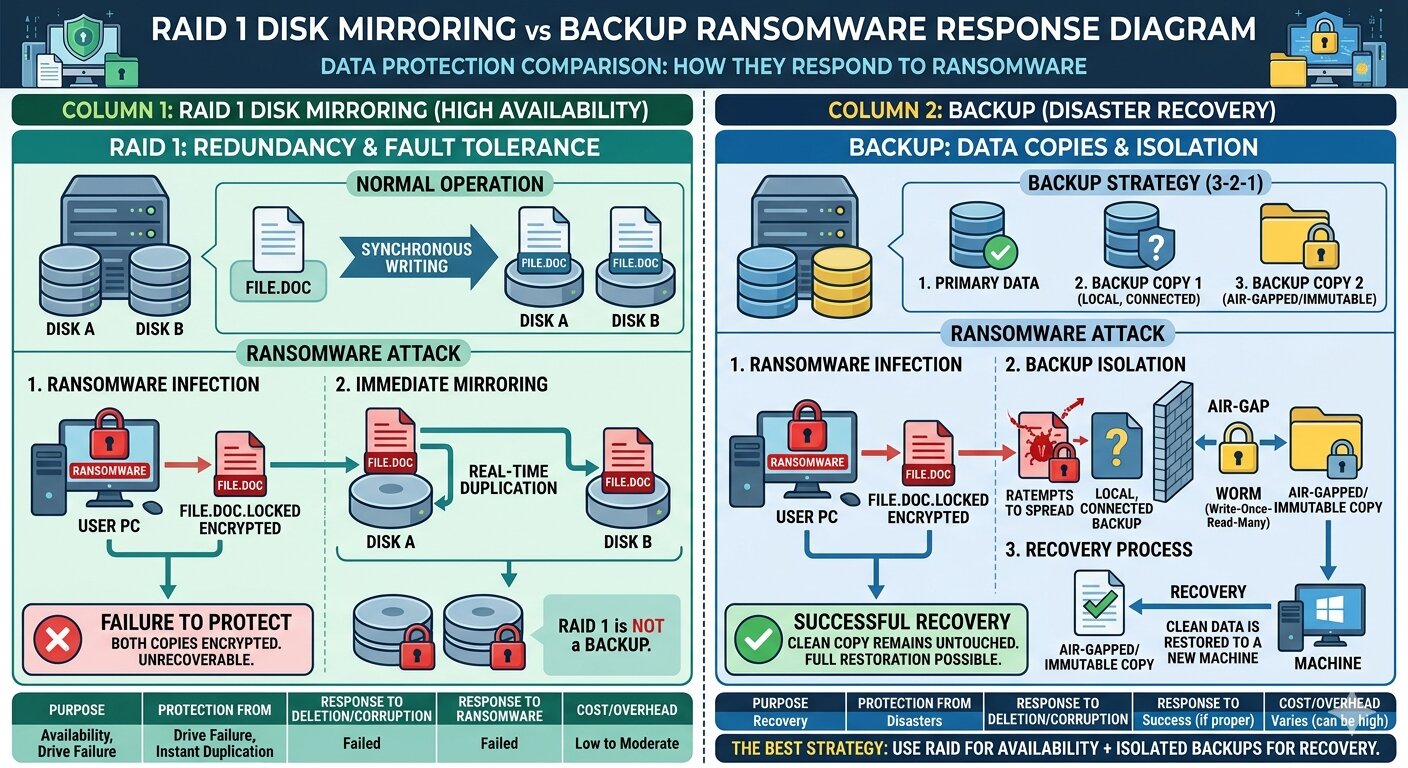

RAID 1 disk mirroring vs backup ransomware diagram

⚠️ Disk Mirroring is NOT a Backup — Most Penalised Error

Any answer stating "mirroring IS a type of backup" scores zero. Ransomware, deletion, virus = instantly replicated to second drive. Only offline backup preserves clean historical data.

✅ "Consequence of absence of disk mirroring" (2025 Q2b-ii — any one)

A failed drive cannot be replaced while the computer is running
A virus attacking one disk will spread to the mirrored disk
Accidental deletion on one disk causes deletion on the other

1.8 Encryption & Access Rights

📌 Encryption

Converting plaintext into unreadable ciphertext using a mathematical algorithm and key. Only a party with the correct decryption key can recover the original data.

Image to insert

Plaintext → [Encryption+Key] → Ciphertext → (network) → [Decryption+Key] → Plaintext. Хакер перехватывает — видит только ciphertext.

Поиск: "encryption decryption process diagram key ciphertext"

✅ "Describe how encryption keeps information secure" (2025 Q2c — 2 marks)

Data converted using algorithm and key into ciphertext unreadable without the correct decryption key.
Secures data while in transit (online transactions, email, file transfers) so intercepted data cannot be read.

📌 Access Rights

Permissions assigned to users/processes defining which resources they may read, write, execute, or delete. Implements the principle of least privilege.

✅ "Two measures to protect confidential data" (2024 Q2a — any two)

Encrypting data
Granting limited access rights to authorised users only
Blocking access from certain IP locations
Keeping logs of all user entries

1.9 Verification vs. Validation

📌 Data Verification

Checking that data entered accurately matches the original source document. Checks whether data was copied correctly — NOT whether it is true.

📌 Data Validation

Automatic check that data is reasonable, sensible, and follows predefined rules. Cannot determine whether data is actually true.

⚠️ Validation Does NOT Check if Data is True

Validation confirms "Age: 25" is a positive integer within range. It cannot confirm this is the person's real age. Writing "validation checks if data is correct/true" = zero marks. Reward words: "reasonable" or "follows the rules."

Image to insert

Слева: Verification — двойной ввод пароля. Справа: Validation — Range Check для поля Age (0–120).

Поиск: "data validation vs verification examples comparison"

✅ "Define data verification" (2024 Q2b — 2 marks)

Computer ensures data input matches the original source document.
Done by double entry or on-screen checking — two entries compared.

Validation Method	Checks	Example
Range check	Value within min–max	Age 0–120; month 1–12
Type check	Correct data type	Age must be integer not "twenty"
Presence check	Required field not empty	Name cannot be blank
Format check	Matches defined pattern	Date must be DD/MM/YYYY
Length check	Within character limit	Password 8–20 characters
Check digit	Mathematical verification	ISBN, barcode, credit card

1.10 System Protection Measures

Image to insert

Инфографика: Firewall, Biometrics, Anti-virus, Encryption, 2FA, Physical lock, Strong password — каждая с иконкой и 1 строкой.

Поиск: "cybersecurity protection measures icons infographic"

Measure	Definition	Protects against
Firewall	Monitors and filters network traffic by predefined rules	Unauthorised network intrusion
Biometrics	Authentication via fingerprint, retina, facial recognition	Unauthorised physical/logical access
Anti-virus	Detects and removes malware by signature comparison	Viruses, trojans, worms
Encryption	Converts data to ciphertext readable only with key	Data theft in transit/storage
2FA	Two forms of verification (password + OTP)	Account compromise
Access rights	Per-user read/write/execute permissions	Privilege escalation

⚠️ Anti-Cracking ≠ General Security

Backup, firewall, antivirus are NOT accepted as "ways to protect against cracking." Required: two-factor authentication, password complexity, SSL/HTTPS, encryption, password hashing, login monitoring.

1.11 Open-Source vs. Closed-Source

📌 Open-Source Software

Released under a licence permitting each recipient to view, copy, modify, and redistribute the source code without paying a fee.

📌 Closed-Source (Proprietary) Software

Source code protected as intellectual property and not released to users. Only compiled executable available under a licence agreement.

⚠️ Open-Source ≠ Free to Download

Open-source means the source code is legally accessible. Marks awarded for mentioning "source code licence" and "right to copy/modify/redistribute" — NOT merely "it's free."

Open-Source

Source code accessible ✓
Usually free
User may modify (under licence)
Community support
Linux, Firefox, Python

Closed-Source

Source code protected ✗
Usually requires payment
User cannot modify
Dedicated vendor support
Windows, Photoshop, iOS

✅ "Describe open-source software" (2024 Q3a-i — 2 marks)

Released under a licence permitting each recipient to copy and modify the software.
Does not require a fee or royalty for the right to copy, modify, or distribute.

Chapter 2 — Computer Systems

2.1 Operating System — Functions

📌 Operating System

System software managing hardware resources, providing a platform for applications, and acting as intermediary between the user and hardware.

Image to insert

Пирамида: Hardware → OS → Application Software → User. Двусторонние стрелки.

Поиск: "operating system layer diagram hardware OS application user"

✅ "Explain two functions of an OS" (1 mark each)

Memory management: allocates RAM; manages virtual memory; handles paging/segmentation
Processor management: schedules processes; enables multitasking
Device management: controls I/O via device drivers
User account management: manages profiles, access rights, authentication
Interrupt handling / Error handling / Security

2.2 Types of Operating Systems

Image to insert

Три карточки: RTOS (монитор+дедлайн), NOS (сервер+клиенты), Batch OS (стопка заданий).

Поиск: "real-time network batch operating system types"

OS Type	Definition	Key Feature	Applications
Real-Time OS (RTOS)	Guarantees processing within strict time deadlines	Missing deadline = system failure	Pacemakers, aircraft, ABS, robots
Network OS (NOS)	Manages network resources; centralised services to clients	Centralised auth and access rights	Windows Server, Linux server
Batch Processing OS	Groups similar jobs; processes without user interaction	No real-time interaction; jobs sorted first	Payroll, bank statements, simulations

✅ "How NOS implements user account management" (2025 Q3b)

Provides authentication and authorisation — only authorised users access resources.
Verifies user identities and assigns appropriate access rights based on account role.

2.3 User Interfaces

Image to insert

Четыре иллюстрации: GUI (рабочий стол), CLI (терминал), Natural Language (голосовой), Gesture (рука).

Поиск: "user interface types GUI CLI natural language gesture"

Interface	Advantages	Disadvantages
GUI	Intuitive; no commands to memorise; easy for beginners	Requires more RAM/CPU; slower for experts; unsuitable for server management
CLI	Fast for experts; minimal resources; precise; scriptable	Steep learning curve; must memorise commands; damaging typing errors
Natural Language	No technical knowledge; natural interaction	Ambiguous; misinterprets colloquialisms; limited technical vocabulary
Gesture Recognition	Intuitive; useful for VR/touchscreens	Misinterpreted; limited commands; physically tiring

✅ "Advantage and disadvantage of CLI for server" (2024 Q4b)

Advantage: Server does not need a GUI, saving computing resources / can run complex commands quickly.
Disadvantage: Difficult for novices / must know exact commands / easy to make damaging errors.

2.4 CPU Registers & System Bus

Register	Full Name	Purpose
PC	Program Counter	Holds address of next instruction to be fetched
MAR	Memory Address Register	Holds memory address currently being read from/written to
MDR	Memory Data Register	Temporarily holds data just fetched from, or about to be written to, memory
CIR	Current Instruction Register	Holds instruction currently being decoded and executed
ACC	Accumulator	Holds results of ALU arithmetic/logic operations

📌 Data Bus

Bidirectional — carries actual data/instruction content between CPU, memory, and I/O.

📌 Address Bus

Unidirectional (CPU→Memory) — carries memory address specifying which location to access. Width = max addressable locations (2ⁿ).

📌 Control Bus

Bidirectional — carries read/write commands, clock pulses, interrupt signals coordinating all components.

Image to insert

CPU (ALU, CU, Registers) ↔ три шины ↔ Main Memory. Address Bus — однонаправленный; Data и Control Bus — двунаправленные.

Поиск: "CPU system bus address data control diagram"

✅ "Names and purposes of buses" (2024 Q5a — 6 marks)

Data bus — carries actual data/information; bidirectional
Address bus — carries where data is sent/collected (memory address)
Control bus — dictates read or write; carries control signals to components

2.5 RISC vs. CISC Architecture

📌 RISC (Reduced Instruction Set Computer)

Small set of simple, fixed-length instructions, each typically in one clock cycle. Memory access = LOAD/STORE only.

📌 CISC (Complex Instruction Set Computer)

Large set of complex, variable-length instructions, many requiring multiple cycles. Can directly access memory.

Image to insert

Сравнительная таблица: RISC (смартфон/ARM) vs CISC (десктоп/Intel). Ключевые различия выделены.

Поиск: "RISC vs CISC comparison infographic ARM Intel"

Feature	RISC	CISC
Instruction set	Small, fixed-length	Large, variable-length
Cycles per instruction	Typically one	Often multiple
Memory access	Only LOAD/STORE	Many instructions access memory
Registers	Many general-purpose	Fewer
Power consumption	Lower ✓	Higher
Primary use	Mobile, tablets (ARM)	Desktop, servers (Intel x86)

⚠️ Never say "RISC is faster" without qualification

Always compare BOTH architectures in the same sentence: "Unlike RISC which uses a small set of fixed simple instructions completing in one cycle, CISC uses a large set of complex variable-length instructions requiring multiple cycles."

★ 2024 Q5b — RISC vs CISC tick-table (mark scheme)

Statement	RISC	CISC
Complex instruction set		✓
Fixed format of instruction	✓
Used in tablets and mobile devices	✓
Uses LOAD and STORE in memory-to-memory interaction		✓
Storing an instruction requires multiple sets of registers	✓

2.6 Fetch-Decode-Execute Cycle

📌 FDE Cycle

Fundamental repeating CPU sequence: fetch next instruction from memory, decode it, execute it — then repeat.

📋 Register Notation

[X] = "contents of register X"  |  [[MAR]] = "data at address stored in MAR"  |  ← = "receives"

Image to insert

FDE цикл с регистрами: PC→MAR→Memory→MDR→CIR→CU→ALU. Fetch=синий, Decode=жёлтый, Execute=зелёный.

Поиск: "fetch decode execute cycle diagram registers" / mr-tea.net → fetch-execute.html

Phase	Step	Notation	Meaning
FETCH	1	`MAR ← [PC]`	Address of next instruction → MAR
	2	`PC ← [PC] + 1`	PC incremented to next instruction
	3	`MDR ← [[MAR]]`	Instruction at address in MAR → MDR
DECODE	4	`CIR ← [MDR]`	Instruction copied to CIR
DECODE	5	CU decodes [CIR]	Control Unit interprets opcode and operand
EXECUTE	6	ALU / I/O / memory op	Decoded instruction is carried out

⚠️ Three Errors from 2024 Paper Q5c

Step	Wrong	Correct	Why
1	`MDR ← [PC]`	`MAR ← [PC]`	PC address → MAR (address reg), NOT MDR (data reg)
2	`PC ← [PC] + 2`	`PC ← [PC] + 1`	PC increments by 1, not 2
4	`CIR ← [MAR]`	`CIR ← [MDR]`	Content is in MDR; MAR only holds addresses

2.7 CPU Performance Factors

Factor	Definition	Effect of increasing
Clock speed	Number of FDE cycles per second (GHz)	More instructions/sec; ⚠️ more heat → overheating
Bus width	Bits carried simultaneously on a bus	More data per transfer; wider address bus = more addressable memory
Word length	Bits CPU processes in a single operation	More data per instruction → faster computation
Cache size	High-speed memory between CPU and RAM	More data at CPU speed → fewer slow RAM accesses
Cores	Independent processing units on one chip	Parallel threads → better multitasking

✅ "Effect of increasing clock speed" (2024 Q5d — 3 marks)

Instructions performed more quickly / FDE cycle happens faster.
More calculations/operations executed per second.
Increased heat generation may cause device to malfunction or overheat.

✅ "Factors affecting CPU performance" (2025 Q4b — 6 marks)

Clock speed — number of cycles performed by CPU per second
Bus width — number of bits a bus can carry at one time
Word length/size — number of bits CPU can process at a time

Do NOT accept "increasing RAM" or "software."

2.8 RAM vs. ROM

📌 RAM (Random Access Memory)

Volatile primary memory — read and write. Contents lost when power removed. Holds running OS, apps, user data.

📌 ROM (Read-Only Memory)

Non-volatile primary memory — read only. Contents retained without power. Holds BIOS, bootloader, firmware.

✅ "Why embedded systems need RAM" (2024 Q6a — 2 marks)

To store user input (e.g., spin speed and washing programme for a washing machine).
To manage the user interface and interaction between user and appliance.

2.9 Virtual Memory & Cache

📌 Virtual Memory

OS technique using secondary storage (HDD/SSD) as RAM extension. Inactive pages moved to swap space on disk, freeing RAM for active use.

📌 Cache Memory

Small, very high-speed memory between CPU and RAM, storing copies of frequently used data to reduce average access time.

Image to insert

Иерархия памяти: L1 Cache → L2 → L3 → RAM → HDD/SSD. Цветовой градиент: красный=быстро/мало → синий=медленно/много.

Поиск: "memory hierarchy pyramid L1 L2 cache RAM storage"

✅ "Purpose of virtual memory"

Frees up RAM when insufficient physical memory is available.
Increases apparent memory beyond physical RAM limits.
Allows multiple large applications to run simultaneously.

2.10 Memory Addressing Modes

📌 Immediate

Operand IS the actual value. No lookup. ADD #10 — adds 10 directly to accumulator.

📌 Direct

Operand is the memory ADDRESS containing the value. One lookup. ADD A — fetches value at address A.

📌 Indirect

Operand gives address containing ANOTHER address, where value resides. Two lookups. ADD (A)

📌 Indexed

Effective address = operand + Index Register. ADD A+Index

Image to insert

Четыре мини-диаграммы: Immediate (значение в инструкции→AC), Direct (1 стрелка), Indirect (2 стрелки), Indexed (сложение адресов).

Поиск: "memory addressing modes diagram immediate direct indirect indexed"

✅ 2024 Q6b — Match answers

Mode	Definition	Example
Immediate	B — operand gives the actual value	F — `ADD #10`
Direct	A — operand gives address storing the value	D — `ADD A`
Indirect	I — operand gives address of register with another address	G — `ADD (A)`
Indexed	E — address = operand + index register	C — `ADD A+Index`

✅ 2025 Q4c — Values loaded into AC (LOAD 15, Index=70)

Mode	Value	Why
Immediate	15	Operand value itself
Direct	25	Value at address 15
Indirect	35	Value at address stored in address 15 (→25→35)
Indexed	30	Value at address 15+70=85

2.11 Paging & Segmentation

📌 Paging

Divides virtual address space into fixed-size pages and physical memory into equal-size frames. Page table maps pages to frames.

📌 Segmentation

Divides memory into variable-size logical segments (code, data, stack) each with a base address and length.

Image to insert

Пагинация: Virtual Address Space (Pages 0–3) ↔ Page Table ↔ Physical Memory (Frames, не по порядку).

Поиск: "paging memory management diagram page table frames"

Paging

Fixed block size
Internal fragmentation
Transparent to programmer
Supports virtual memory ✓

Segmentation

Variable block size
External fragmentation
Logical program structure
Partially visible to programmer

✅ "Explain how paging is used" (2025 Q5a — 3 marks)

Enables processes to share physical memory efficiently.
Breaks virtual space into fixed-size pages; physical memory into same-size frames.
Page table maps pages to frames; inactive pages swapped to disk (virtual memory).

2.12 Virtual Machines

📌 Virtual Machine (VM)

Software emulation of a physical computer running its own OS and applications in complete isolation from the host.

📌 Hosted VM (Type 2)

Runs on top of a host OS. Hypervisor is an application within the host OS. Lower performance.

📌 Unhosted / Bare-Metal (Type 1)

Runs directly on hardware — no host OS. Higher performance. Used in enterprise/data centres.

Image to insert

Type 1: Hardware→Hypervisor→VM1,VM2. Type 2: Hardware→Host OS→Hypervisor→VM1,VM2.

Поиск: "type 1 vs type 2 hypervisor bare metal hosted diagram"

✅ "Two examples of VM use" (2025 Q5b — any two)

Server virtualisation
Software testing and development
Legacy application support
Disaster recovery and backup
Cloud computing

Chapter 3 — AI & Programming

3.1 AI Applications

📌 Artificial Intelligence

Simulation of human cognitive processes — learning, reasoning, problem-solving, perception, language — by computer systems.

⚠️ Never Name Software Without Describing Purpose

Mark scheme: "Do not accept name of software without purpose/description." "ChatGPT" = zero. Write: "AI systems that analyse medical imaging to detect disease."

Image to insert

Пять секций с иконками: Медицина, Образование, Игры, Промышленность, Общество. Для каждой — 2 примера с описанием.

Поиск: "AI applications sectors infographic medicine gaming education"

Sector	Examples (must include purpose)
Medicine	Disease diagnosis; medical imaging interpretation (X-ray/MRI); drug discovery; personalised treatment plans
Education	Adaptive learning platforms; automated marking; intelligent tutoring systems
Gaming	NPC intelligent behaviour; procedural content generation; player behaviour analysis
Industry	Predictive maintenance; quality control vision systems; robotic assembly
Society	Predictive crime analytics; social media moderation; smart city traffic management

3.2 VR vs. AR

📌 Virtual Reality (VR)

Completely replaces the user's real-world view with a computer-generated environment. Real world entirely blocked out.

📌 Augmented Reality (AR)

Overlays digital information onto the existing real-world view. Real world remains visible and is enhanced.

Virtual Reality (VR)

Real world: BLOCKED OUT ✗
Enclosed VR headset
Fully immersive
Gaming, training, therapy

Augmented Reality (AR)

Real world: VISIBLE ✓ + enhanced
Smartphone, AR glasses
Partially immersive
Navigation, surgery, Pokémon GO

Image to insert

Слева: VR шлем — только цифровой мир. Справа: смартфон — реальный мир + цифровые объекты поверх.

Поиск: "virtual reality vs augmented reality comparison diagram"

✅ "Explain difference between VR and AR" (2024 Q7c-i — 2 marks)

VR completely replaces the user's field of vision; AR adds digital elements to the real-world view.
VR headsets fully enclose the eyes; AR overlays appear on a smartphone or tablet screen.

✅ "Two purposes of AR" (2025 Q6b — any two)

Provides real-time access to information relevant to the physical world
Provides immersive and interactive learning/training experiences
Provides entertainment through mobile games and interactive storytelling

3.3 Language Generations

Gen	Name	Key characteristic	Example
1GL	Machine code	Binary; directly executed; machine-specific	`01001001`
2GL	Assembly	Mnemonics; 1 instruction ≈ 1 machine code; needs assembler	`MOV AX, 5`
3GL	High-level	English-like; portable; needs compiler/interpreter	Python, Java
4GL	Very high-level	Domain-specific; WHAT not HOW	SQL
5GL	Logic/constraint	Define constraints; system finds solution; AI	Prolog

✅ "Relationship between 2GL and machine code" (2024 Q7a — 1 mark)

Usually, one assembly language instruction is translated into one machine code instruction.

✅ "Two reasons programmers avoid low-level languages" (2024 Q7b)

Machine-dependent — not portable to other architectures.
Difficult to develop/debug/maintain — more error-prone; requires knowledge of specific CPU architecture.

3.4 Compilers vs. Interpreters

📌 Compiler

Translates entire source code into standalone machine code executable before any execution.

📌 Interpreter

Translates and executes source code one line at a time in real time. No output file produced.

⚠️ A Compiler Does NOT Execute Code

Compiler TRANSLATES. CPU EXECUTES. "Compiled executable runs faster because no translation is required at runtime."

Image to insert

Два пути: (1) Compiler: Source→Compiler→Executable→CPU. (2) Interpreter: Source→Interpreter(translate+execute line by line).

Поиск: "compiler vs interpreter comparison flowchart"

Feature	Compiler	Interpreter
Translation unit	Entire program at once	One line at a time
Output file	Standalone executable ✓	No output file
Runtime speed	Fast — no translation	Slower — translates every run
Error reporting	All errors after full analysis	Stops at first error
Debugging	Harder — all errors listed	Easier — error shown at runtime

3.5 Declarative vs. Imperative

📌 Declarative

Expresses WHAT the result should be. Runtime decides HOW. Includes: Functional, Logic (Prolog), Query (SQL).

📌 Imperative

Describes HOW to achieve result — explicit ordered sequence changing program state. Includes: Procedural (C), OOP (Python, Java).

★ Side-by-side — "Find students with grade A"

Declarative (SQL)

SELECT name FROM students
WHERE grade = 'A';

Says WHAT. Runtime decides HOW.

Imperative (Python)

for s in students:
  if s.grade == 'A':
    print(s.name)

Every step explicitly defined.

✅ "Two differences: declarative vs imperative" (2023 Q9)

Declarative focuses on WHAT; imperative focuses on HOW step by step.
In declarative, execution sequence not defined by programmer; in imperative, clearly defined sequence is specified.

3.6 Compilation Stages

Image to insert

Pipeline: Source Code→[Lexical]→Tokens→[Syntax]→AST→[Code Gen]→Object Code→[Optimisation]→Executable. Каждый блок другого цвета.

Поиск: "compiler stages pipeline diagram lexical syntax code generation"

📌 Stage 1 — Lexical Analysis

Source code scanned; whitespace/comments removed; characters grouped into tokens (keyword, identifier, operator, literal, separator).

★ 2025 Q7a — Tokenising if(x == 0)

Token Type	Value
Keyword	`if`
Bracket	`(`
Identifier	`x`
Operator	`==`
Number	`0`
Bracket	`)`

Answer: Stage = Lexical analysis

📌 Stage 2 — Syntax Analysis

Receives token stream; checks whether sequence conforms to grammar rules. Produces parse tree / AST.

⚠️ Syntax Analysis Checks STRUCTURE Only

NOT meaning, NOT undeclared variables, NOT logical correctness.

✅ "Describe syntax analysis" (2025 Q7c — 2 marks)

Receives input in the form of tokens from lexical analysis.
Analyses syntax of statements to ensure they conform to the grammar rules of the language.

📌 Stage 3 — Code Generation

Translates verified AST into target machine code (object file).

📌 Stage 4 — Code Optimisation

Transforms generated code to improve efficiency without changing observable behaviour.

Technique	Definition	Example
Dead code elimination	Removes code that can never execute	Remove always-false if block
Constant folding	Evaluates constant expressions at compile time	`x=3*4` → `x=12`
Loop optimisation	Moves invariant calculations outside loops	Extract constant calc from loop
Strength reduction	Replaces expensive ops with cheaper equivalents	multiply by 2 → left bit shift

★ 2025 Q7b — Dead Code Elimination

a = 5
if (a != 5) {   ← ALWAYS FALSE since a=5
    ........    ← can NEVER execute
}

Optimisation: Dead code elimination | Optimised: a = 5 (if block removed)

Chapter 4 — Communication & Networks

4.1 LAN vs. WAN

Feature	LAN	WAN
Geographic area	Single building/campus/site	Cities, countries, continents
Ownership	Single organisation	Leased from telecom providers
Speed	High: 100 Mbps – 10 Gbps	Variable; generally lower
Security	Easier — controlled environment	Harder — crosses public infrastructure
Example	School/office network	The Internet, corporate MPLS

4.2 Network Topologies

Image to insert

Четыре диаграммы: Bus (линия), Ring (кольцо), Star (звезда), Mesh (каждый с каждым).

Поиск: "network topology bus ring star mesh comparison diagram"

Topology	Advantages	Disadvantages
Bus	Cheap; simple; easy to extend	Backbone failure = whole network fails
Ring	Equal access; token passing prevents collisions	One node failure can break ring
Star	One cable fault doesn't affect others	Central switch failure disables all nodes
Mesh	High redundancy; no single point of failure	Very expensive; complex cabling

✅ 2025 Q8a answers

Topology name (Fig.3): Mixed / Hybrid topology
Advantage of topology A (ring): Equal access / minimum collision / easy to manage
Disadvantage of topology C (star): If central switch fails, all attached nodes are disabled

4.3 Network Hardware

Device	Definition	Layer	Key feature
Hub	Broadcasts all data to every port	L1	No intelligence — creates unnecessary traffic
Switch	Forwards data only to intended recipient using MAC table	L2	Intelligent forwarding; reduces collisions
Router	Connects different networks; routes packets using IP and routing table	L3	Routes between networks/Internet
NIC	Hardware providing network connectivity	L1–2	Has permanent unique MAC address

✅ "Two purposes of a router" (2025 Q8b)

To direct traffic between different subnetworks using the routing table.
To route data packets through the network to their intended destinations.

4.4 Packet vs. Circuit Switching

📌 Packet Switching

Data broken into discrete packets; each independently routed; reassembled at destination. Different packets may take different routes.

📌 Circuit Switching

Dedicated physical circuit established before transmission; maintained exclusively throughout the session.

Image to insert

Слева: Packet Switching — P1,P2,P3 идут разными путями. Справа: Circuit Switching — одна выделенная линия A→B.

Поиск: "packet switching vs circuit switching comparison diagram"

Feature	Packet Switching	Circuit Switching
Dedicated path	No — packets route independently	Yes — fixed circuit
Resource use	Efficient — shared bandwidth	Inefficient — reserved when idle
Data order	May arrive out of order	Always in order
Use case	Internet, email, file transfer	Traditional telephone (PSTN)

✅ "Why FTP NOT suitable for live streaming" (2024 Q8d-i)

FTP breaks data into packets that can be retransmitted and reassembled out-of-order — this takes time.
Not suitable for continuous real-time streaming requiring immediate sequential delivery.

4.5 The OSI Model

📌 OSI Model

7-layer framework standardising network communication, with each layer having specific responsibilities. Enables interoperability between different systems.

Image to insert

Вертикальная диаграмма 7 слоёв: Layer 7 Application → Layer 1 Physical. Слои 4 и 2 выделены.

Поиск: "OSI model 7 layers diagram all protocols"

#	Layer	Key Protocols / Devices
7	Application	HTTP, HTTPS, FTP, SMTP, POP3, DNS
6	Presentation	SSL/TLS, JPEG, ASCII
5	Session	NetBIOS, RPC
4	Transport ★	TCP, UDP
3	Network	IP, ICMP, Routers
2	Data Link ★	Ethernet, Wi-Fi, Switches, MAC addresses
1	Physical	Cables, hubs, electrical signals

⚠️ Layer Assignments Are Directly Examined

MAC = Layer 2 (Switches). IP = Layer 3 (Routers). TCP/UDP = Layer 4. HTTP/FTP/SMTP = Layer 7.

✅ 2025 Q10c — Missing layers: Layer 4 = Transport | Layer 2 = Data Link

4.6 WWW vs. Internet vs. Intranet

📌 The Internet

Global network of interconnected networks — the physical infrastructure of hardware (cables, routers, servers) connecting billions of devices.

📌 World Wide Web (WWW)

Collection of multimedia web pages accessed via the Internet using HTTP/HTTPS. One service running ON the Internet.

📌 Intranet

Private network for an organisation's members only; uses Internet technologies but not publicly accessible.

⚠️ Internet ≠ World Wide Web

Internet = physical infrastructure (cables, routers). WWW = service (web pages via HTTP) running ON the Internet. "The internet is where you find websites" conflates these — loses the mark.

Image to insert

Вложенные круги: "Internet (physical)" → внутри "WWW (web pages via HTTP)" + другие сервисы. Отдельный круг "Intranet (private)".

Поиск: "internet vs WWW intranet nested circles venn diagram"

4.7 URL Structure & DNS

📌 URL (Uniform Resource Locator)

Complete address: protocol + hostname/domain + path + filename.

★ URL Anatomy & Domain Levels

https://www.nis.edu.kz/documents/report.pdf
  ↑         ↑                 ↑
Protocol  Hostname         Path+file

www.sk.nis.edu.kz  (read RIGHT → LEFT)
             .kz  = TLD (top-level domain)
          edu     = 2nd-level ← (2023 Q12d answer)
      nis         = 3rd-level
  sk              = subdomain

📌 DNS (Domain Name System)

Hierarchical distributed database translating domain names (e.g., www.google.com) into IP addresses.

Image to insert

DNS resolution: Browser→Local Cache→Local DNS→Root DNS→TLD DNS→Authoritative DNS→IP returned→Browser connects.

Поиск: "DNS resolution process steps diagram browser root authoritative"

✅ "How domain name used to access website" (2024 Q8a — 5 marks)

DNS server contains list of domain names and corresponding IP addresses.
Browser checks local cached host file for the IP address.
Local DNS server is queried.
If not found, query passed to a higher-level DNS server.
IP address resolved and returned; browser connects and downloads site.

4.8 MAC Addresses

📌 MAC Address

Permanent hardware identifier assigned to NIC by manufacturer. 48 bits; 6 hex pairs e.g. 00:1A:2B:3C:4D:5E. Used for routing within LAN at OSI Layer 2.

⚠️ MAC = LAN. IP = WAN. Never Reverse.

MAC: physical, permanent, Layer 2, switches, within LAN. IP: logical, changeable, Layer 3, routers, across Internet.

✅ "Two differences MAC vs IP" (2025 Q9c)

MAC is physical/hardware identifier (manufacturer); IP is logical/network identifier (admin/DHCP).
MAC is permanent; IP is changeable.
MAC for routing within LAN; IP for routing across networks/Internet.

✅ "Two ways to find MAC address" (2025 Q9b)

Command prompt: ipconfig /all (Windows) or ifconfig (Linux/Mac)
GUI: Control Panel → Network and Sharing Centre → Adapter Properties

4.9 Network Protocols

Image to insert

Карточки с иконками: HTTP (браузер), HTTPS (замок), FTP (папка), SMTP (отправка письма), POP3 (получение письма), TCP/IP (соединение).

Поиск: "network protocols HTTP SMTP FTP POP3 TCP icons table"

Protocol	Full Name	Function
HTTP	HyperText Transfer Protocol	Transferring web pages — unencrypted
HTTPS	HTTP Secure	Encrypted HTTP using TLS/SSL
FTP	File Transfer Protocol	Transferring files between client and server
SMTP	Simple Mail Transfer Protocol	Sending email client → mail server
POP3	Post Office Protocol v3	Retrieving email from mail server → client
TCP/IP	Transmission Control Protocol / Internet Protocol	Establishing reliable connections; foundational Internet suite

⚠️ SMTP Sends. POP3 Receives. FTP = Files Only.

Reversed every year. FTP NOT suitable for real-time streaming.

✅ Protocol matching (2025 Q10a — 3 marks)

TCP/IP → establish a connection between devices on a network
FTP → transferring files between client and server
POP3 → retrieving email messages from a mail server

4.10 IP Addresses

📌 IPv4

Decimal notation with four 8-bit octets separated by dots. 32 bits total → 2³² ≈ 4.3 billion addresses. Example: 188.10.52.2

📌 IPv6

Hexadecimal notation with eight groups of four hex digits separated by colons. 128 bits total → 2¹²⁸ addresses.

Image to insert

IPv4: "192.168.1.1" — 4 octets × 8 bits = 32 bits. IPv6: "2001:0db8:..." — 8 quartets × 16 bits = 128 bits.

Поиск: "IPv4 vs IPv6 address format comparison annotated"

Class	First Octet	Default Mask
A	1–126	255.0.0.0
B	128–191	255.255.0.0
C	192–223	255.255.255.0

📋 Network and Host Address from Subnet Mask

Mask = 255: keep IP octet → network address
Mask = 0: replace with 0 → network; keep original → host address

★ 2024 Q8e — IP: 188.10.52.2, Mask: 255.255.0.0

Class:           B  (188 in range 128–191)
Network address: 188.10.0.0
Host address:    0.0.52.2

✅ "Explain formats of IPv4 and IPv6" (2025 Q10b — 2 marks)

IPv4: Decimal notation; four 8-bit octets; 32 bits; 2³² addresses
IPv6: Hexadecimal notation; eight groups of four hex digits; 128 bits; 2¹²⁸ addresses

Feature	Public IP	Private IP
Globally unique	✓ Yes	✗ No (unique within LAN only)
Routable on Internet	✓ Yes	✗ No (requires NAT)
Assigned by	ISP	Router DHCP or admin
Private ranges	—	10.x.x.x / 172.16–31.x.x / 192.168.x.x

Appendix — Quick Reference

A — Command Words

Command	Expected Response	Marks
STATE / NAME	Specific fact only. Zero explanation.	1
DESCRIBE	What it is + how it works. Do NOT explain why.	2–3
EXPLAIN	Fact + reason/consequence. Use "because…", "therefore…", "which means…"	2–4
COMPARE	Address BOTH items in same sentence. "Unlike X which A, Y does B."	2–4
EVALUATE	Pros + cons + concluding judgement for the scenario.	4–6
DEFINE	Precise technical meaning. No analogies.	1–2
JUSTIFY	State decision + defend with technical reasons from the scenario.	2–3

B — Topic Frequency (2023–2025)

Topic	2023	2024	2025	Priority
Two's complement	✓	✓	✓	🔴 Critical
Floating-point / normalisation	✓	—	✓	🔴 Critical
Data security / integrity / privacy	✓	✓	✓	🔴 Critical
Protocols (HTTP/SMTP/FTP/POP3)	✓	✓	✓	🔴 Critical
Memory addressing modes	✓	✓	✓	🔴 Critical
DNS resolution process	✓	✓	✓	🔴 Critical
OS functions / memory management	✓	✓	✓	🔴 Critical
RISC vs. CISC	—	✓	✓	🟠 High
FDE cycle / register notation	—	✓	—	🟠 High
Compilation stages	✓	—	✓	🟠 High
Backup vs. disk mirroring	—	—	✓	🟠 High
Open-source software	✓	✓	—	🟠 High
Paging / segmentation	✓	—	✓	🟠 High
Virtual machine (hosted/unhosted)	—	✓	✓	🟠 High
MAC vs. IP address	—	—	✓	🟠 High
OSI model layers	—	—	✓	🟠 High
VR vs. AR	—	✓	✓	🟡 Medium
AI applications	—	—	✓	🟡 Medium
CPU performance factors	—	✓	✓	🟡 Medium
IP classes / subnet mask	✓	✓	—	🟡 Medium
Packet vs. circuit switching	✓	✓	—	🟡 Medium
Network topology	—	—	✓	🟡 Medium
Validation vs. Verification	✓	✓	—	🟡 Medium
Declarative vs. Imperative	✓	—	—	🟡 Medium

C — All Warnings (Pre-exam Review)

W1 — Disk mirroring is NOT a backup

Ransomware/deletion/virus = instantly mirrored. Only offline backup preserves clean history.

W2 — Security ≠ Privacy ≠ Integrity

Security=HOW. Privacy=WHO. Integrity=WHETHER. Never conflate them.

W3 — Validation does NOT check if data is TRUE

Only "reasonable" and "follows the rules." Zero for "checks if correct/true."

W4 — Open-source ≠ free to download

Mark awarded for source code licence and right to copy/modify/redistribute.

W5 — Non-normalised floating-point mantissa

Positive: 0.1... Negative: 1.0... Starting 0.01... = not normalised → no mantissa mark.

W6 — Show 8-bit overflow explicitly

Always show carry bit, then state 8-bit result. Marks awarded separately.

W7 — FDE register errors (2024)

Step 1: MAR not MDR. Step 2: +1 not +2. Step 4: CIR←[MDR] not [MAR].

W8 — Never say "RISC is faster" without qualification

Always compare BOTH architectures in the same sentence.

W9 — Compiler does NOT execute code

Compiler=TRANSLATES. CPU=EXECUTES the machine code output.

W10 — Syntax analysis checks structure ONLY

NOT meaning, NOT undeclared variables, NOT logical correctness.

W11 — Internet ≠ WWW

Internet=physical infrastructure. WWW=service running on the Internet via HTTP.

W12 — MAC=LAN. IP=WAN.

MAC: physical, permanent, Layer 2, switches, LAN. IP: logical, changeable, Layer 3, routers, Internet.

W13 — SMTP sends. POP3 receives. FTP=files only.

FTP NOT suitable for real-time streaming.

W14 — AI: describe purpose, not software name

"ChatGPT" = zero. Write what the AI DOES.

W15 — Anti-cracking ≠ general security

Backup/firewall/antivirus NOT accepted. Need: 2FA, password complexity, SSL, encryption, hashing, login monitoring.
